Garrett GT2860RS Turbo, T04B 3" Comp Hsg, .48 A/R T3 Inlet & GT 3" V-Band Turbine Hsg
Quantity in Basket: None
Code: GRT-TBO-963
Price: $1,009.41
Shipping Weight: 3.00 pounds
Quantity:
Garrett GT2860RS Turbo, T04B 3


Click to enlarge images


PRODUCT DESCRIPTION:

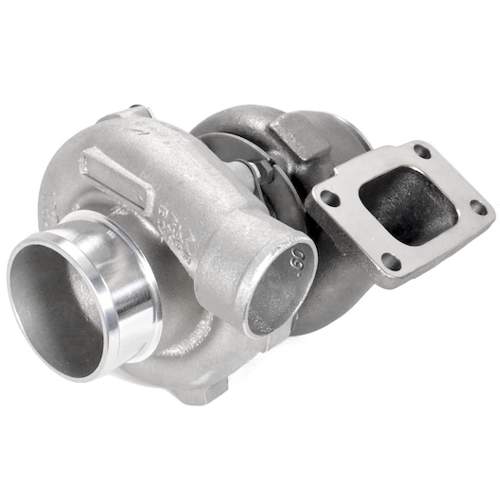

Garrett GT2860RS (aka Disco Potato) ball bearing turbocharger with a T04B Frame Compressor Housing (3" Inlet and 2" Outlet) and .48 A/R T3 Inlet and GT 3" V-Band Outlet turbine housing. +350HP potential flow.

PRODUCT FEATURES:
  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 47.2mm
  • Compressor Wheel Exducer: 60.1mm
  • Compressor Wheel Trim: 62
  • Compressor Housing: 0.60 A/R T04B Frame, 3" Inlet and 2" Outlet
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Exducer: 47mm
  • Turbine Wheel Trim: 76
  • Turbine Housing: 0.48 A/R T3 Inlet, GT 3" V-Band Outlet (footprint interchanges with GT30 housings)


  • Note on Turbine A/R Sizing. Because A/R size is relative to the turbine housing frame size, this "T3" Frame turbine housing in the .48 A/R flows similar to the .64 A/R on the internally gated "T25" frame turbine housing.

    The bigger T3 pad opening allows the turbine flow to direct gases more efficiently to and out of the wheel so it's possible that you will see quicker spool and more power out of T3 .48 A/R housing.

    COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

  • T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
  • T3 Inlet Gasket: Product Code:GRT-GSK-005
  • GT 3" V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-246
  • V-Band Clamp: Product Code:CLC-CLA-048


  • COMPRESSOR & TURBINE MAPS:



    APPLICABLE GARRETT PART NUMBERS:
  • 835998-0007
  •
