Catalog Home > Turbos & Housings > Garrett T series - Ball Bearing

Turbocharger, Garrett **Ball Bearing** , T3/T4E 57 Trim Compressor

Quantity in Basket: None
Code: GRT-TBO-042
Price: $1,695.00
Shipping Weight: 3.00 pounds

Quantity:

Turbine Housing A/R (Default/standard is 4 bolt outlet):
.82
.63
.48
.72 A/R (only available on Special T25 EWG-44
.72 A/R (For Cosworth housing)
Alternate Turbine Housing Options below (Add'l costs apply):
T3/T4 5 bolt (Ford style) discharge ($50 add'l)  (only .63 or .82 Available)
T3/T4 5 bolt (Ford style) discharge ($50 add'l) (only .63 or .82 Available)
Special Turbine Housing T25-EWG-44
Special Turbine Housing T25-EWG-44
Special Turbine housing - Cosworth style T3 inlet with 3 bolt outlet
Special Turbine housing - Cosworth style T3 inlet with 3 bolt outlet

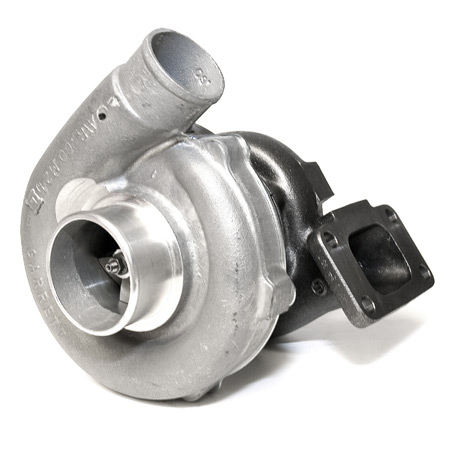

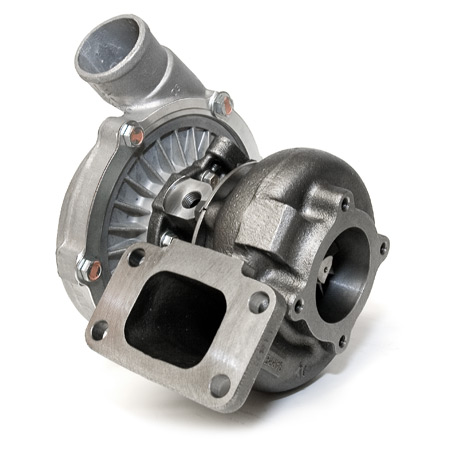

Turbocharger, Garrett **Ball Bearing** ,  T3/T4E 57 Trim Compressor


Dual ball bearing Garrett T3/T4E, T04E 57 trim compressor with 3" inlet and 2" outlet. Stage III turbine wheel with T31 4 bolt. Uses ATP-OIL-021 oil inlet fitting. T3/4 drain flange. Coolant in/out required (14mm threads - same as GT series ball bearing). Great 450HP turbo. Available A/R, .48, .63, .82


Related Item(s)
Related Parts:
Code Name Price
ATP-OIL-021 -4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035" RESTRICTOR $12.00
ATP-OIL-036 -3 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035" RESTRICTOR $12.00
ATP-FTG-003 Banjo Fitting Kit for coolant lines - 14mm Machined Alum to 1/4" NPT $26.95
ATP-FTG-002 Banjo Fitting - 14mm banjo to 1/4" NPT (Banjo Only) $19.95
ATP-FTG-004 14mm Banjo Fitting Set for coolant lines - 3/8" (10mm) Barb (common size) $18.00
ATP-FTG-012 Fitting, Metric 14mm to -6AN, Male to Male (For coolant or oil) GT/GTX28 30 35 G Series $14.95
ATP-FTG-050 Banjo Bolt, 14mm x 1.5 pitch w/ 2 crush washers $9.95
ATP-FTG-053 Banjo Fitting Kit, (1) ALUM Banjo fitting 14mm hole (for 14mm bolt) with -6 AN male flare $29.90
ATP-FTG-052 ALUM Banjo Fitting, 14mm hole (for 14mm bolt) with -6 AN male flare. $19.95
ATP-FLA-009 Aluminum - Oil Drain (Return) Flange T3 /T4, GT37, GT40, GT42, GTX42, GTX45 $13.95
ATP-OIL-046 Oil Drain (Return) LONG STRAIGHT Tube with Integrated Flanged, T3, T4, T3/T4, GT40R, GT42R GTX42 GTX $29.00
GRT-GSK-005 Gasket, T3 Turbine Inlet - UNDIVIDED $6.95
ATP-GSK-019 Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated) $9.00
ATP-GSK-015 Gasket, T3 Turbine Inlet, DIVIDED $9.00
GRT-GSK-004 Gasket, T25/GT25 Turbine Inlet for GT25 GT28/GTX28 $6.95
ATP-GSK-016 Gasket, 5-Bolt for Garrett T25 Flanged GT28 GTX28/2930R-WG Turbine Housings $6.95
ATP-GSK-012 Gasket, "T31" 4 Bolt Turbine Discharge Downpipe Gasket aka 2.5" 4 bolt $8.00
