Catalog Home > Turbos & Housings > Garrett G Series Resource Page > G25-550

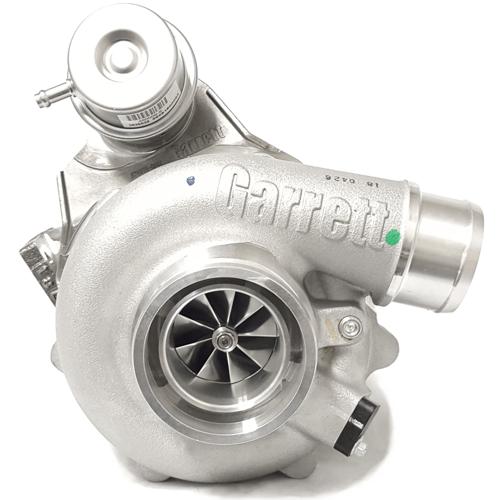

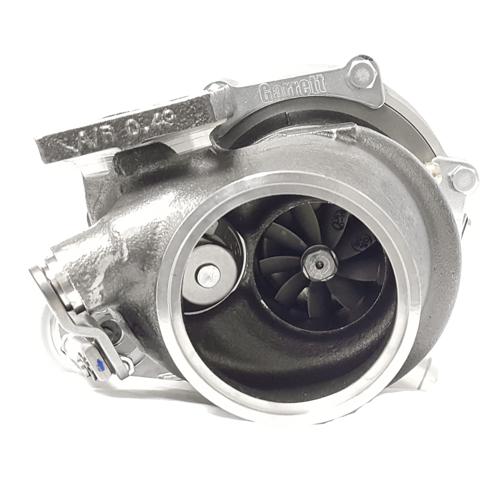

Garrett G25-550 & T25, w/ Internally Wastegated Turbine Housing, .49 A/R. # 877895-5001S

Quantity in Basket: None
Code: GRT-TBO-638
Price: $2,311.66
Shipping Weight: 3.00 pounds

Quantity:

OPTIONAL Actuator Pressure Selection:
Garrett G25-550 & T25, w/ Internally Wastegated Turbine Housing, .49 A/R. # 877895-5001S

Product Description:
    The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel T25 Inlet, V-Band Outlet, and Internal Wastegate .49 A/R turbine housing (Garrett Part #877895-5001S). 550HP from a small frame package!
    • Ultra High Flow G-Series Compressor Wheel
    • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
    • Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
Oil Fittings, Flanges, and Components Solutions: Compressor & Turbine Maps:
Garrett Part Number:
  • 877895-5001S
