Catalog Home
>
Turbos & Housings
>
Garrett T series - Ball Bearing
Garrett T04Z Ball Bearing Turbo *SOLD OUT - NO ETA - USE GRT-TBO-490*
Quantity in Basket:
None
Code:
GRT-TBO-055
Price:
$9,999.00
Shipping Weight:
3.00 pounds
PRODUCT DESCRIPTION:

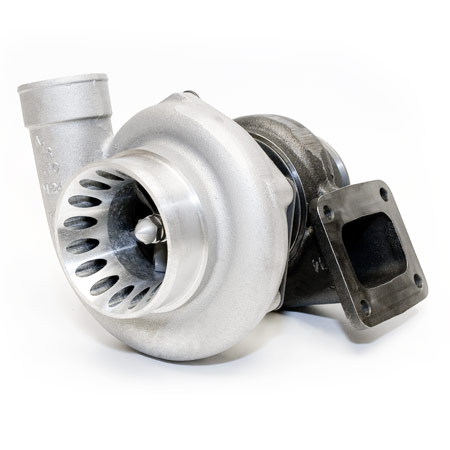

Dual Ball Bearing Garrett To4Z. 700-750HP potential flow. Compressor wheel diameter is 84mm exd. / 66.7mm ind. (63trim) Compressor housing is .70 A/R has a 4" inlet and 2.5" outlet slip on connection. Flexible range of T3, T4 (divided and undivided), and V-Band Turbine housings!
This unit is usually in stock and ships withing 1-2 days.
TURBINE HOUSING OPTIONS:
Divided T4 Housing with standard 3" V-Band Outlet: .70, .84, 1.00, or 1.15 A/R
Undivided T4 with standard 3" V-Band Outlet: .61, .70, or .96 A/R
T31 (T3) with 4 bolt outlet: .63 or .82 A/R
Stainless Steel TiAL compatible V-Band Inlet & Outlet: .82 or 1.01 A/R
TURBINE SPECIFICATIONS:
Wheel: 74.2mm w/ 76 trim
Maps
COMPRESSOR SPECIFICATIONS
Wheel: 84.0mm exd./66.7mm ind w/ 63 trim
Housing: 0.70 A/R
Maps
APPLICABLE GARRETT P/N's:
740759-5002S
